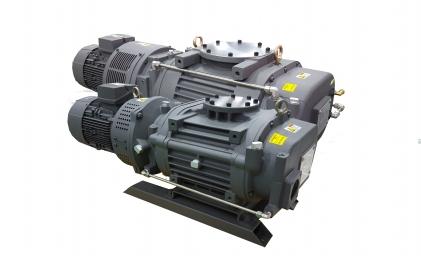

ATM moving type booster pump
Bestech
Còn hàng
Vui lòng liên hệ
Đánh giá (0)

Mechanical Booster pump

제품사진
  • product_p 버튼
  • ATM moving type booster pump
  • product_n 버튼
ATM moving type booster pump

BOOSTER PUMP (BM1A,BM3B,BM3A,BM6A) Detail

  • 메뉴얼다운로드
  •
  • 파트리스트 다운로드
  • 리스트



Mechanical booster pump(ATM moving type) consist of two lobed rotors mounted on parallel shafts in casing. The rotors have substantial clearance(0.1~0.6mm) between themselves and the housing. They rotate in synchronism in opposite directions at speed of 3500rpm. This is possible because a fluid is not used to seal the gaps between the rotors and the pump housing. The two lobes counter-rotate to continuously transfer gas in one direction through the pump to backing line. Bestech's mechanical booster pumps are using high-grade alloy and special coated rotor to wear resistance and to enhance stiffness. Also, the special mechanical seal provide longer life cycle and reliability.

Mechanical Booster pump

제품사진
  • product_p 버튼
  • ATM moving type booster pump
  • product_n 버튼
ATM moving type booster pump

BOOSTER PUMP(BM12A,BM24A) Detail

  • 메뉴얼다운로드
  •
  • 파트리스트 다운로드
  • 리스트

  • 제품사진

  • - Displacement speed(60Hz) : 100 ~ 2400 m3/hr
  • - Ultimate Pressure : 5 x 10-4 Torr

    • Mechanical booster pump(ATM moving type) consist of two lobed rotors mounted on parallel shafts in casing. The rotors have substantial clearance(0.1~0.6mm) between themselves and the housing. They rotate in synchronism in opposite directions at speed of 3500rpm. This is possible because a fluid is not used to seal the gaps between the rotors and the pump housing. The two lobes counter-rotate to continuously transfer gas in one direction through the pump to backing line. Bestech's mechanical booster pumps are using high-grade alloy and special coated rotor to wear resistance and to enhance stiffness. Also, the special mechanical seal provide longer life cycle and reliability.
  • 제품사진

  • - Displacement speed(60Hz) : 100 ~ 2400 m3/hr
  • - Ultimate Pressure : 5 x 10-4 Torr
